EDR710

Product Information

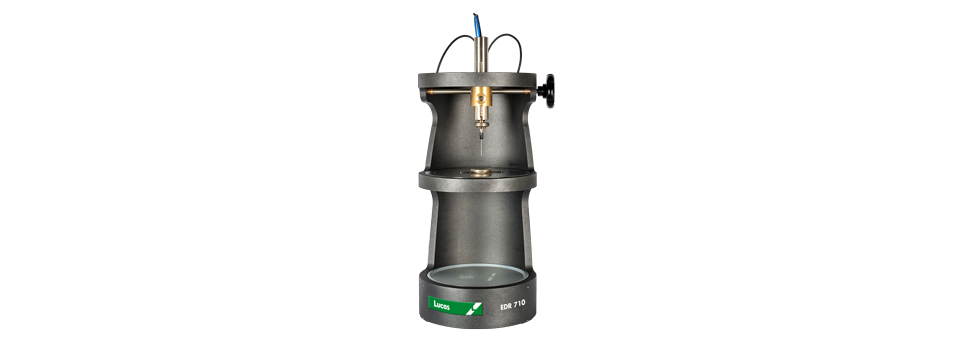

Mini semi-automatic calibration robot for all brands of diesel injectors

Common rail injectors
Common rail piezo injectors
HEUI injectors

The technological design of the EDR 710 mini calibration robot enables precise semi-automatic adjustment of any semi-automatic adjustment BOSCH, VDO, DENSO and CAT Common Rail injector.

Thanks to the ongoing development of new configuration records for all of the systems and to the generation of new accessories, the EDR 710 is equipped to meet any market requirements.

EQUIPMENT COMPOSITION

EDR 710 - LDFT0011

EQUIPMENT

REF.
LDFT1126	AIR PRESSURE REGULATOR FILTER
LDFT1127	ADAPTOR EXHIBITOR
LDFT1128	CALIBRATION ADAPTOR (KD-022)
LDFT1129	APP FOR BOSCH CRI & CRIN INJECTORS
LDFT1130	PC USB CONNECTION CABLE
LDFT1131	POWER SUPPLY CABLE
LDFT1132	SOFTWARE

ACCESSORIES

REF.
LDFT0376	SIEMENS INJECTORS APP
LDFT0375	DENSO INJECTORS APP
LDFT1134	6.4/6.6 PERKINS-CAT INJECTORS APP
LDFT0379	CR INJECTORS SPRING GAUGE
LDFT0377	HEUI C7 – C9 CAT – FORD INJECTORS APP

TECHNICAL SPECIFICATIONS

EDR 710 - LDFT0011

DRIVE SYSTEM

MOTOR	SINGLE PHASE 220 VAC
POWER	70 kW
FREQUENCY	50/60 Hz

MEASURE SYSTEM

PRECISION	High precision electronic range Precise measurement technology High repeatability
PRESSURE	Requires 2 bars of air pressure
TIME	All measurements in 7 minutes
THICKNESS MEASUREMENT	Armature stroke Armature stroke air gap Nozzle needle lift Valve spring force (only with the optional P.N. LDFT0379) Nozzle spring force (only with the optional P.N. LDFT0379)

IT SYSTEM

OPERATING SYSTEM	PC not included
SOFTWARE	ALCOTAN Electronic measurement system supplied on CD

DIMENSIONS

HEIGHT	87 mm
WIDTH	54 mm
DEPTH	47 mm
VOLUME	0.2 m³
WEIGHT	75 kg
BODY CONSTRUCTION	Iron

INFORMATION SYSTEMS

MULTIBRAND	All brands
TEST RECORDS	Generation and storage of personalised test records by means of the software Available for BOSCH CR CRIN & CRI Available for DENSO CR CRI Available for SIEMENS CR
UPDATING	Permanent over the internet
SOURCES	Original specifications of the automobile manufacturers
WORK PROGRAMME	Pre-established values Personalised values (automatic or manual)
INFORMATION	Insulation test Coil resistance tests Tightening parameters to correctly adjust each part of the injector There is no need to dismantle the injector again after the bench tests
